RFMICROTEK DESIGN SERVICES

We provide high quality and cost effective digital, rfic, microwave and millimeter wave designs that meet your needs

We have a workflow that suits your needs

We have workflows that suit RF/Microwave Design, Digital Design as well the technology and skill to design critical nets using Axiem of for Electromagnetic Analysis. Our design processes work for low frequency up to 100s of GHz.

RF/RFIC/MMIC MICROWAVE & MILLIMETERWAVE DESIGN

Our workflow utilizes MWO/Axiem/Analyst/VSS and MMIC Libraries to reduce the design life cycle

1) AWR/Cadence Microwave Office/Sonnet

Formats include ODB++,IPC2581, GDSII, DXF, Gerber

3) Axiem for Electromagnetic Simulation

4) Analyst for 3D EM and Multitechnology design

3) Axiem for Electromagnetic Simulation

4) MMIC Libraries for major foundaries

5) System Level Design using AWR/Cadence Visual System Simulator (VSS)

6) Maple and Matlab

7) PTC Creo/Autocad 2019

Learn more >>

PCB Design

Our workflow utilizes

1) Mentor Graphics Pads Professional

Formats include ODB++,IPC2581, GDSII, DXF, Gerber

2) High Speed/Critical Nets are exported to Microwave Office/Axiem for futher analysis

3)PTC Creo/Autocad 2019

Learn more >>

TRADING STORE

1)Solar Power Equipment

2) Musical Equipment

Learn more >>

Past Projects

Some of our past projects

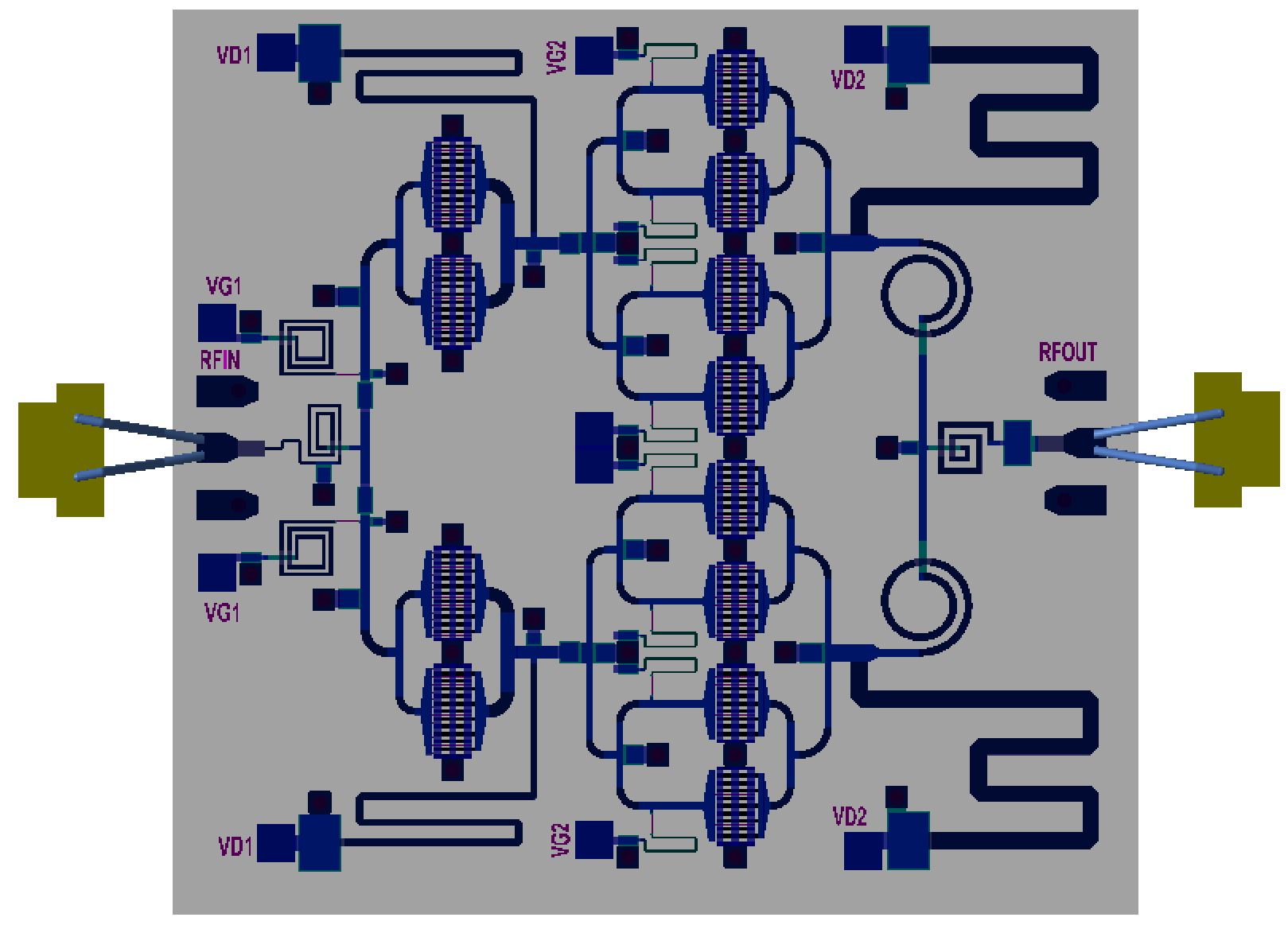

1W X-Band HPA MMIC Design using Microwave Office/Axiem

We design using well calibrated MMIC models from most foundaries

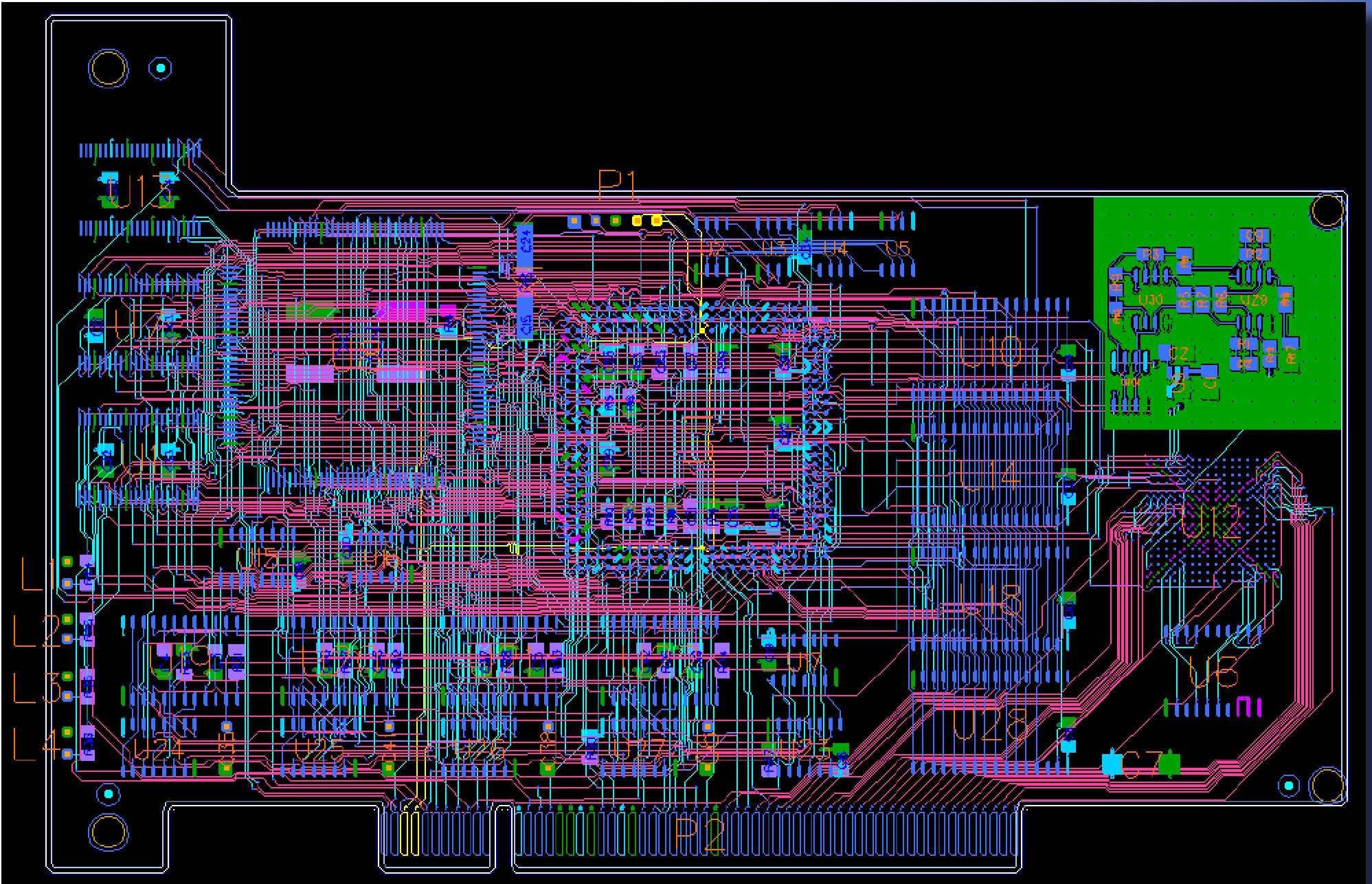

PCB Design using Pads Pro, Axiem, PTC Creo for Heat Sinks

We design PCBs using readily available models using PadsPro and fine tune high speed or critical nets using Microwave Office/Axiem

1W X-Band MMIC PA

Design of MMICs using foundary libraries

X-Band Local Oscillator

Design of X-Band LOs

X-Band Gilbert Mixer

Design of X-Band Mixers

X-Band Filter

Design of X-Band Filters

X-Band Modules

Design of X-Band Modules

5G System Design

Design your 5G Systems using VSS/MWO

Design of a 1W X-Band class F PA

Design of RF/Microwave Power Amplifiers

Design of a 1W X-Band Broadband PA

Design of broadband PAs

We will be happy to work with your design team to meet your needs and reduce costs

We have design captbilities in both hardware and software as well as artificial intelligence using neuro-fuzzy computing. We look forward to meeting your needs and resolving our design challenges.

WHO WE ARE

We design and market RF/Microwave/Millimeter Wave equipment in Africa, we also trade with a shop and warehouse in Ghana.

GET IN TOUCH

RFMICROTEK
No ............Addogono, Teshie Nungua Estates, Accra. Ghana. 233-302
P: (+233) 57606-1954
